ZR/ZF/ZM系列Miba/Zollern滑動軸承
Zollern Z型水平軸承是根據不同的DIN和ISO規范設計的，適用于各種重型應用（電機、風扇和鼓風機、渦輪機和試驗臺）。
- 型號： ZR/ZF/ZM
- 品牌： Miba/Zollern（米巴/卓輪）

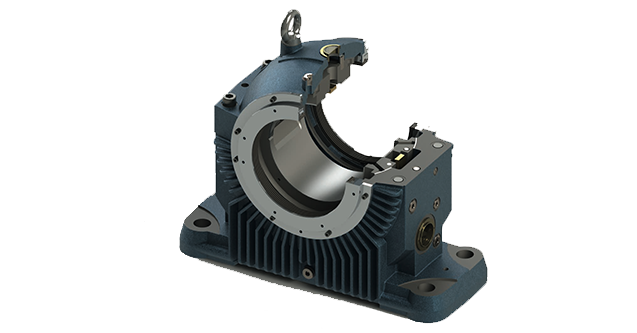

ZR系列設計說明
MibaZR型水平軸承根據DIN31690標準規格設計，適用于各種重型應用(電機)。渦輪機、鼓風機和試驗臺)。模塊化系統適用于不同類型的軸承(支座。端法蘭和中心法蘭)，也就是說，它總是可以組合這個系統的不同模塊，如殼體潤滑環和其他設備。因此，組裝簡單，在安裝、調試和維護過程中避免了由于螺釘和銷的定位而導致的錯誤。

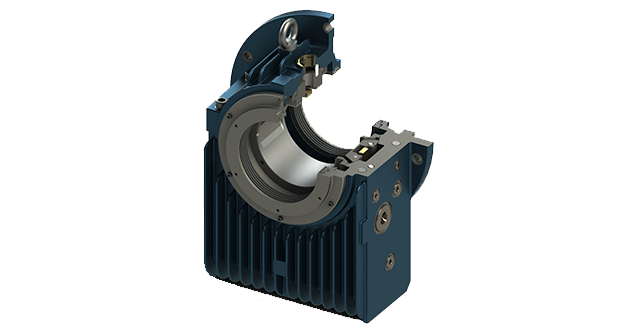

ZF系列設計說明
ZF型水平軸承根據DIN31693標準規格設計，適用于各種重型應用(電機、渦輪機和試驗臺)。模塊化系統適用于不同類型的軸承(支座、端法蘭和中心法蘭)，也就是說，始終可以將該系統的不同模塊組合。因此，組裝簡單，在安裝、調試和維護過程中避免了由于螺釘和銷的定位而導致的錯誤。

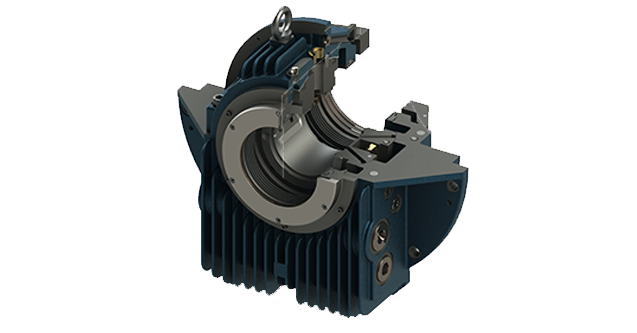

ZM系列設計說明
Miba型ZM水平軸承根據DIN31694標準規格設計適用于各種重型應用 (電機、渦輪機和試驗臺)模塊化系統適用于不同類型的軸承(支座、端法蘭和中心法蘭)，也就是說，始終可以將該系統的不同模塊組合。因此，組裝簡單，在安裝、調試和維護過程中避免了由于螺釘和銷的定位而導致的錯誤。
ZR/ZF/ZM滑動軸承常見規格
Miba滑動軸承常見規格 | ||||||
SIZE | ZM Series(中心法蘭安裝) | ZF Series(端法蘭安裝) | ZR Series(底座安裝(散熱片)) | |||
自潤滑滑動軸承 | 獨立油潤滑軸承 | 自潤滑滑動軸承 | 獨立油潤滑軸承 | 自潤滑滑動軸承 | 獨立油潤滑軸承 | |
7 | ZMNLQ7-60 | ZMZLQ 7-60 | ZFNLQ 7-60 | ZFZLQ 7-60 | / | |
ZMNLQ 7-70 | ZMZLQ 7-70 | ZFNLQ 7-70 | ZFZLQ 7-70 | |||
ZMNLQ 7-80 | ZMZLQ 7-80 | ZFNLQ 7-80 | ZFZLQ 7-80 | |||
ZMNLQ 7-90 | ZMZLQ 7-90 | / | ||||
ZMNLB 7-60 | ZMZLB 7-60 | ZFNLB 7-60 | ZFZLB 7-60 | |||
ZMNLB 7-70 | ZMZLB 7-70 | ZFNLB 7-70 | ZFZLB 7-70 | |||
ZMNLB 7-80 | ZMZLB 7-80 | ZFNLB 7-80 | ZFZLB 7-80 | |||
ZMNLB 7-90 | ZMZLB 7-90 | / | ||||
9 | ZMNLQ 9-80 | ZMZLQ 9-80 | ZFNLQ 9-80 | ZFZLQ 9-80 | ZRNLQ 9-80 | ZRNLQ 9-80 |
ZMNLQ 9-90 | ZMZLQ 9-90 | ZFNLQ 9-90 | ZFZLQ 9-90 | ZRNLQ 9-90 | ZRNLQ 9-90 | |
ZMNLQ 9-100 | ZMZLQ 9-100 | ZFNLQ 9-100 | ZFZLQ 9-100 | ZRNLQ 9-100 | ZRNLQ 9-100 | |
ZMNLQ 9-110 | ZMZLQ 9-110 | / | ZRNLQ 9-110 | ZRNLQ 9-110 | ||
ZMNLB 9-80 | ZMZLB 9-80 | ZFNLB 9-80 | ZFZLB 9-80 | ZRNLB 9-80 | ZRNLB 9-80 | |
ZMNLB 9-90 | ZMZLB 9-90 | ZFNLB 9-90 | ZFZLB 9-90 | ZRNLB 9-90 | ZRNLB 9-90 | |
ZMNLB 9-100 | ZMZLB 9-100 | ZFNLB 9-100 | ZFZLB 9-100 | ZRNLB 9-100 | ZRNLB 9-100 | |
ZMNLB 9-110 | ZMZLB 9-110 | / | ZRNLB 9-110 | ZRNLB 9-110 | ||
11 | ZMNLQ 11-100 | ZMZLQ 11-100 | ZFNLQ 11-100 | ZFZLQ 11-100 | ZRNLQ 11-100 | ZRNLQ 11-100 |
ZMNLQ 11-110 | ZMZLQ 11-110 | ZFNLQ 11-110 | ZFZLQ 11-110 | ZRNLQ 11-110 | ZRNLQ 11-110 | |
ZMNLQ 11-125 | ZMZLQ 11-125 | ZFNLQ 11-125 | ZFZLQ 11-125 | ZRNLQ 11-125 | ZRNLQ 11-125 | |
ZMNLQ 11-140 | ZMZLQ 11-140 | / | ZRNLQ 11-140 | ZRNLQ 11-140 | ||
ZMNLB 11-100 | ZMZLB 11-100 | ZFNLB 11-100 | ZFZLB 11-100 | ZRNLB 11-100 | ZRNLB 11-100 | |
ZMNLB 11-110 | ZMZLB 11-110 | ZFNLB 11-110 | ZFZLB 11-110 | ZRNLB 11-110 | ZRNLB 11-110 | |
ZMNLB 11-125 | ZMZLB 11-125 | ZFNLB 11-125 | ZFZLB 11-125 | ZRNLB 11-125 | ZRNLB 11-125 | |
ZMNLB 11-140 | ZMZLB 11-140 | / | ZRNLB 11-140 | ZRNLB 11-140 | ||
14 | ZMNLQ 14-125 | ZMZLQ 14-125 | ZFNLQ 14-125 | ZFZLQ 14-125 | ZRNLQ 14-125 | ZRNLQ 14-125 |
ZMNLQ 14-140 | ZMZLQ 14-140 | ZFNLQ 14-140 | ZFZLQ 14-140 | ZRNLQ 14-140 | ZRNLQ 14-140 | |
ZMNLQ 14-160 | ZMZLQ 14-160 | ZFNLQ 14-160 | ZFZLQ 14-160 | ZRNLQ 14-160 | ZRNLQ 14-160 | |
ZMNLQ 14-180 | ZMZLQ 14-180 | ZFNLQ 14-180 | ZFZLQ 14-180 | ZRNLQ 14-180 | ZRNLQ 14-180 | |
ZMNLB 14-125 | ZMZLB 14-125 | ZFNLB 14-125 | ZFZLB 14-125 | ZRNLB 14-125 | ZRNLB 14-125 | |
ZMNLB 14-140 | ZMZLB 14-140 | ZFNLB 14-140 | ZFZLB 14-140 | ZRNLB 14-140 | ZRNLB 14-140 | |
ZMNLB 14-160 | ZMZLB 14-160 | ZFNLB 14-160 | ZFZLB 14-160 | ZRNLB 14-160 | ZRNLB 14-160 | |
ZMNLB 14-180 | ZMZLB 14-180 | ZFNLB 14-180 | ZFZLB 14-180 | ZRNLB 14-180 | ZRNLB 14-180 | |
18 | ZMNLQ 18-160 | ZMZLQ 18-160 | ZFNLQ 18-160 | ZFZLQ 18-160 | ZRNLQ 18-160 | ZRNLQ 18-160 |
ZMNLQ 18-180 | ZMZLQ 18-180 | ZFNLQ 18-180 | ZFZLQ 18-180 | ZRNLQ 18-180 | ZRNLQ 18-180 | |
ZMNLQ 18-200 | ZMZLQ 18-200 | ZFNLQ 18-200 | ZFZLQ 18-200 | ZRNLQ 18-200 | ZRNLQ 18-200 | |
ZMNLQ 18-225 | ZMZLQ 18-225 | ZFNLQ 18-225 | ZFZLQ 18-225 | ZRNLQ 18-225 | ZRNLQ 18-225 | |
ZMNLB 18-160 | ZMZLB 18-160 | ZFNLB 18-160 | ZFZLB 18-160 | ZRNLB 18-160 | ZRNLB 18-160 | |
ZMNLB 18-180 | ZMZLB 18-180 | ZFNLB 18-180 | ZFZLB 18-180 | ZRNLB 18-180 | ZRNLB 18-180 | |
ZMNLB 18-200 | ZMZLB 18-200 | ZFNLB 18-200 | ZFZLB 18-200 | ZRNLB 18-200 | ZRNLB 18-200 | |
ZMNLB 18-225 | ZMZLB 18-225 | ZFNLB 18-225 | ZFZLB 18-225 | ZRNLB 18-225 | ZRNLB 18-225 | |
22 | ZMNLQ 22-200 | ZMZLQ 22-200 | ZFNLQ 22-200 | ZFZLQ 22-200 | ZRNLQ 22-200 | ZRNLQ 22-200 |
ZMNLQ 22-225 | ZMZLQ 22-225 | ZFNLQ 22-225 | ZFZLQ 22-225 | ZRNLQ 22-225 | ZRNLQ 22-225 | |
ZMNLQ 22-250 | ZMZLQ 22-250 | ZFNLQ 22-250 | ZFZLQ 22-250 | ZRNLQ 22-250 | ZRNLQ 22-250 | |
ZMNLQ 22-280 | ZMZLQ 22-280 | ZFNLQ 22-280 | ZFZLQ 22-280 | ZRNLQ 22-280 | ZRNLQ 22-280 | |
ZMNLQ 22-300 | ZMZLQ 22-300 | ZFNLQ 22-300 | ZFZLQ 22-300 | ZRNLQ 22-300 | ZRNLQ 22-300 | |
ZMNLB 22-200 | ZMZLB 22-200 | ZFNLB 22-200 | ZFZLB 22-200 | ZRNLB 22-200 | ZRNLB 22-200 | |
ZMNLB 22-225 | ZMZLB 22-225 | ZFNLB 22-225 | ZFZLB 22-225 | ZRNLB 22-225 | ZRNLB 22-225 | |
ZMNLB 22-250 | ZMZLB 22-250 | ZFNLB 22-250 | ZFZLB 22-250 | ZRNLB 22-250 | ZRNLB 22-250 | |
ZMNLB 22-280 | ZMZLB 22-280 | ZFNLB 22-280 | ZFZLB 22-280 | ZRNLB 22-280 | ZRNLB 22-280 | |
ZMNLB 22-300 | ZMZLB 22-300 | ZFNLB 22-300 | ZFZLB 22-300 | ZRNLB 22-300 | ZRNLB 22-300 | |
28 | ZMNLQ 28-250 | ZMZLQ 28-250 | ZFNLQ 28-250 | ZFZLQ 28-250 | ZRNLQ 28-250 | ZRNLQ 28-250 |
ZMNLQ 28-280 | ZMZLQ 28-280 | ZFNLQ 28-280 | ZFZLQ 28-280 | ZRNLQ 28-280 | ZRNLQ 28-280 | |
ZMNLQ 28-300 | ZMZLQ 28-300 | ZFNLQ 28-300 | ZFZLQ 28-300 | ZRNLQ 28-300 | ZRNLQ 28-300 | |
ZMNLQ 28-315 | ZMZLQ 28-315 | ZFNLQ 28-315 | ZFZLQ 28-315 | ZRNLQ 28-315 | ZRNLQ 28-315 | |
ZMNLQ 28-335 | ZMZLQ 28-335 | ZFNLQ 28-335 | ZFZLQ 28-335 | ZRNLQ 28-335 | ZRNLQ 28-335 | |
ZMNLQ 28-355 | ZMZLQ 28-355 | ZFNLQ 28-355 | ZFZLQ 28-355 | ZRNLQ 28-355 | ZRNLQ 28-355 | |
ZMNLB 28-250 | ZMZLB 28-250 | ZFNLB 28-250 | ZFZLB 28-250 | ZRNLB 28-250 | ZRNLB 28-250 | |
ZMNLB 28-280 | ZMZLB 28-280 | ZFNLB 28-280 | ZFZLB 28-280 | ZRNLB 28-280 | ZRNLB 28-280 | |
ZMNLB 28-300 | ZMZLB 28-300 | ZFNLB 28-300 | ZFZLB 28-300 | ZRNLB 28-300 | ZRNLB 28-300 | |
ZMNLB 28-315 | ZMZLB 28-315 | ZFNLB 28-315 | ZFZLB 28-315 | ZRNLB 28-315 | ZRNLB 28-315 | |
ZMNLB 28-335 | ZMZLB 28-335 | ZFNLB 28-335 | ZFZLB 28-335 | ZRNLB 28-335 | ZRNLB 28-335 | |
ZMNLB 28-355 | ZMZLB 28-355 | ZFNLB 28-355 | ZFZLB 28-355 | ZRNLB 28-355 | ZRNLB 28-355 | |
Miba滑動軸承其它規格
ZM系列 | ZF系列 | ZR系列 | ||||||||||||
ZMNCQ | ZMNCB | ZMNCK | ZMNCD | ZMNCA | ZFNCQ | ZFNCB | ZFNCK | ZFNCD | ZFNCA | ZRNCQ | ZRNCB | ZRNCK | ZRNCD | ZRNCA |
ZMNLQ | ZMNLB | ZMNLK | ZMNLD | ZMNLA | ZFNLQ | ZFNLB | ZFNLK | ZFNLD | ZFNLA | ZRNLQ | ZRNLB | ZRNLK | ZRNLD | ZRNLA |
ZMNFQ | ZMNFB | ZMNFK | ZMNFD | ZMNFA | ZFNFQ | ZFNFB | ZFNFK | ZFNFD | ZFNFA | ZRNFQ | ZRNFB | ZRNFK | ZRNFD | ZRNFA |
ZMNYQ | ZMNYB | ZMNYK | ZMNYD | ZMNYA | ZFNYQ | ZFNYB | ZFNYK | ZFNYD | ZFNYA | ZRNYQ | ZRNYB | ZRNYK | ZRNYD | ZRNYA |
ZMNVQ | ZMNVB | ZMNVK | ZMNVD | ZMNVA | ZFNVQ | ZFNVB | ZFNVK | ZFNVD | ZFNVA | ZRNVQ | ZRNVB | ZRNVK | ZRNVD | ZRNVA |
ZMNKQ | ZMNKB | ZMNKK | ZMNKD | ZMNKA | ZFNKQ | ZFNKB | ZFNKK | ZFNKD | ZFNKA | ZRNKQ | ZRNKB | ZRNKK | ZRNKD | ZRNKA |
ZMZCQ | ZMZCB | ZMZCK | ZMZCD | ZMZCA | ZFZCQ | ZFZCB | ZFZCK | ZFZCD | ZFZCA | ZRZCQ | ZRZCB | ZRZCK | ZRZCD | ZRZCA |
ZMZLQ | ZMZLB | ZMZLK | ZMZLD | ZMZLA | ZFZLQ | ZFZLB | ZFZLK | ZFZLD | ZFZLA | ZRZLQ | ZRZLB | ZRZLK | ZRZLD | ZRZLA |
ZMZFQ | ZMZFB | ZMZFK | ZMZFD | ZMZFA | ZFZFQ | ZFZFB | ZFZFK | ZFZFD | ZFZFA | ZRZRQ | ZRZRB | ZRZRK | ZRZRD | ZRZRA |
ZMZYQ | ZMZYB | ZMZYK | ZMZYD | ZMZYA | ZFZYQ | ZFZYB | ZFZYK | ZFZYD | ZFZYA | ZRZYQ | ZRZYB | ZRZYK | ZRZYD | ZRZYA |
ZMZVQ | ZMZVB | ZMZVK | ZMZVD | ZMZVA | ZFZVQ | ZFZVB | ZFZVK | ZFZVD | ZFZVA | ZRZVQ | ZRZVB | ZRZVK | ZRZVD | ZRZVA |
ZMZKQ | ZMZKB | ZMZKK | ZMZKD | ZMZKA | ZFZKQ | ZFZKB | ZFZKK | ZFZKD | ZFZKA | ZRZKQ | ZRZKB | ZRZKK | ZRZKD | ZRZKA |
ZMXCQ | ZMXCB | ZMXCK | ZMXCD | ZMXCA | ZFXCQ | ZFXCB | ZFXCK | ZFXCD | ZFXCA | ZRXCQ | ZRXCB | ZRXCK | ZRXCD | ZRXCA |
ZMXLQ | ZMXLB | ZMXLK | ZMXLD | ZMXLA | ZFXLQ | ZFXLB | ZFXLK | ZFXLD | ZFXLA | ZRXLQ | ZRXLB | ZRXLK | ZRXLD | ZRXLA |
ZMXFQ | ZMXFB | ZMXFK | ZMXFD | ZMXFA | ZFXFQ | ZFXFB | ZFXFK | ZFXFD | ZFXFA | ZRXFQ | ZRXFB | ZRXFK | ZRXFD | ZRXFA |
ZMXYQ | ZMXYB | ZMXYK | ZMXYD | ZMXYA | ZFXYQ | ZFXYB | ZFXYK | ZFXYD | ZFXYA | ZRXYQ | ZRXYB | ZRXYK | ZRXYD | ZRXYA |
ZMXVQ | ZMXVB | ZMXVK | ZMXVD | ZMXVA | ZFXVQ | ZFXVB | ZFXVK | ZFXVD | ZFXVA | ZRXVQ | ZRXVB | ZRXVK | ZRXVD | ZRXVA |
ZMXKQ | ZMXKB | ZMXKK | ZMXKD | ZMXKA | ZFXKQ | ZFXKB | ZFXKK | ZFXKD | ZFXKA | ZRXKQ | ZRXKB | ZRXKK | ZRXKD | ZRXKA |
ZMWCQ | ZMWCB | ZMWCK | ZMWCD | ZMWCA | ZFWCQ | ZFWCB | ZFWCK | ZFWCD | ZFWCA | ZRWCQ | ZRWCB | ZRWCK | ZRWCD | ZRWCA |
ZMWLQ | ZMWLB | ZMWLK | ZMWLD | ZMWLA | ZFWLQ | ZFWLB | ZFWLK | ZFWLD | ZFWLA | ZRWLQ | ZRWLB | ZRWLK | ZRWLD | ZRWLA |
ZMWFQ | ZMWFB | ZMWFK | ZMWFD | ZMWFA | ZFWFQ | ZFWFB | ZFWFK | ZFWFD | ZFWFA | ZRWFQ | ZRWFB | ZRWFK | ZRWFD | ZRWFA |
ZMWYQ | ZMWYB | ZMWYK | ZMWYD | ZMWYA | ZFWYQ | ZFWYB | ZFWYK | ZFWYD | ZFWYA | ZRWYQ | ZRWYB | ZRWYK | ZRWYD | ZRWYA |
ZMWVQ | ZMWVB | ZMWVK | ZMWVD | ZMWVA | ZFWVQ | ZFWVB | ZFWVK | ZFWVD | ZFWVA | ZRWVQ | ZRWVB | ZRWVK | ZRWVD | ZRWVA |
ZMWKQ | ZMWKB | ZMWKK | ZMWKD | ZMWKA | ZFWKQ | ZFWKB | ZFWKK | ZFWKD | ZFWKA | ZRWKQ | ZRWKB | ZRWKK | ZRWKD | ZRWKA |
ZMUCQ | ZMUCB | ZMUCK | ZMUCD | ZMUCA | ZFUCQ | ZFUCB | ZFUCK | ZFUCD | ZFUCA | ZRUCQ | ZRUCB | ZRUCK | ZRUCD | ZRUCA |
ZMULQ | ZMULB | ZMULK | ZMULD | ZMULA | ZFULQ | ZFULB | ZFULK | ZFULD | ZFULA | ZRULQ | ZRULB | ZRULK | ZRULD | ZRULA |
ZMUFQ | ZMUFB | ZMUFK | ZMUFD | ZMUFA | ZFUFQ | ZFUFB | ZFUFK | ZFUFD | ZFUFA | ZRUFQ | ZRUFB | ZRUFK | ZRUFD | ZRUFA |
ZMUYQ | ZMUYB | ZMUYK | ZMUYD | ZMUYA | ZFUYQ | ZFUYB | ZFUYK | ZFUYD | ZFUYA | ZRUYQ | ZRUYB | ZRUYK | ZRUYD | ZRUYA |
ZMUVQ | ZMUVB | ZMUVK | ZMUVD | ZMUVA | ZFUVQ | ZFUVB | ZFUVK | ZFUVD | ZFUVA | ZRUVQ | ZRUVB | ZRUVK | ZRUVD | ZRUVA |
ZMUKQ | ZMUKB | ZMUKK | ZMUKD | ZMUKA | ZFUKQ | ZFUKB | ZFUKK | ZFUKD | ZFUKA | ZRUKQ | ZRUKB | ZRUKK | ZRUKD | ZRUKA |
ZMTCQ | ZMTCB | ZMTCK | ZMTCD | ZMTCA | ZFTCQ | ZFTCB | ZFTCK | ZFTCD | ZFTCA | ZRTCQ | ZRTCB | ZRTCK | ZRTCD | ZRTCA |
ZMTLQ | ZMTLB | ZMTLK | ZMTLD | ZMTLA | ZFTLQ | ZFTLB | ZFTLK | ZFTLD | ZFTLA | ZRTLQ | ZRTLB | ZRTLK | ZRTLD | ZRTLA |
ZMTFQ | ZMTFB | ZMTFK | ZMTFD | ZMTFA | ZFTFQ | ZFTFB | ZFTFK | ZFTFD | ZFTFA | ZRTFQ | ZRTFB | ZRTFK | ZRTFD | ZRTFA |
ZMTYQ | ZMTYB | ZMTYK | ZMTYD | ZMTYA | ZFTYQ | ZFTYB | ZFTYK | ZFTYD | ZFTYA | ZRTYQ | ZRTYB | ZRTYK | ZRTYD | ZRTYA |
ZMTVQ | ZMTVB | ZMTVK | ZMTVD | ZMTVA | ZFTVQ | ZFTVB | ZFTVK | ZFTVD | ZFTVA | ZRTVQ | ZRTVB | ZRTVK | ZRTVD | ZRTVA |
ZMTKQ | ZMTKB | ZMTKK | ZMTKD | ZMTKA | ZFTKQ | ZFTKB | ZFTKK | ZFTKD | ZFTKA | ZRTKQ | ZRTKB | ZRTKK | ZRTKD | ZRTKA |
米巴工業軸承
米巴軸承集團的工業軸承分公司生產用于機械和平面工程的流體動壓軸承和迷宮式密封件，這些產品廣泛應用于各種高性能應用領域。
